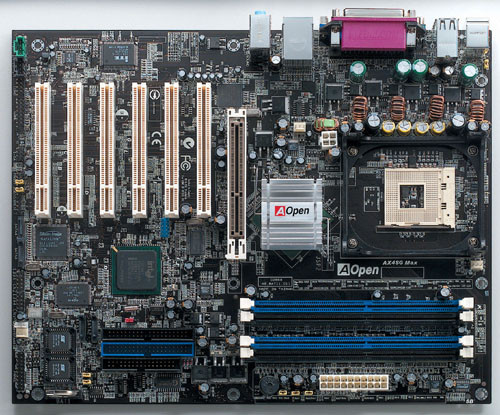

AOPEN AX4SG MAX

ESPECIFICACIONES

Model

AX4SG Max II

CPU:

Socket : Socket 478
Type : Support Intel Pentium 4 CPU
FSB 800MHz

Chipset

Intel 865G
Intel ICH5

Memoria Principal

Dual Channel Mode
DDR400 [PC3200]
DIMM : DDR DIMM
DIMM Type : 64/128/256/512MB & 1GB
Max Memory : 4GB

Graficos:

8X AGP slot
Support ADD card
Integrated VGA Engine in chipset

IDE

Integrated ATA100 and Serial ATA Controller
Silicon Image Serial ATA Control Chip [Support RAID 0,1,0+1]
Max Disk : 144,000,000GB [by 48 bits LBA Spec.]

LAN

Integrated Intel Gigabit LAN Controller

Audio

Chip : Realtek AC'97 CODEC on-board
7.1 Channel

USB

Integrated in chipset
USB 2.0 Port x 1

IEEE 1394

Agere 1394 Control Chip
Integrated Agere PHY

Slot

AGP
PCI

Almacenamiento

y

Panel Trasero Entrada/Salida

Serial ATA Channel : Serial ATA Channel x 1
IDE Channel : ATA100
Floppy Drive Connector : Floppy Drive Connector x 1
PS/2 Keyboard : x 1
PS/2 Mouse : x 1
VGA Port : x 1
Printer Port : Printer Port x 1
COM Port : COM Port x 1
USB Port : USB Port x 1
LAN Port : LAN Port x 1
Line_In : x 1
Speaker_Out : x 1
MIC_In : x 1

Conectores en placa

CPU FAN
Chassis FAN
System FAN
Front Audio
Power FAN
Power Temperature Connector
Front Panel Connector : Front Panel
EX Sound connector
CD_IN Connector : CD_IN
IrDA Connector : IrDA
USB Port
IEEE 1394 Connector : IEEE 1394
COM2 Connector : COM2 Port x 1
Game Connector
SSR_OUT
Chassis Intrusion Connector : Case Open Connector

BIOS

Award PnP 4Mb Flash ROM BIOS
2nd Flash ROM for DieHard BIOS

Form Factor

ATX

Tamaño placa

305 mm x 244 mm

Software y Utilidades

Acrobat Reader
Norton Anti-Virus
AOconfig utility
EzClock utility
EzSkin utility
EzWinFlash utility
SilentTek Software
WinDMI utility
WinBIOS utility
Online eBook Manual

Accesorios

Serial ATA cable
Serial ATA Power cable x 1
40-wire IDE cable
80-wire IDE cable
Floppy Disk cable
IEEE1394+USB2.0 Cable x 1
Game port+COM2 Cable x 1
EX Sound Module x 1
CPU Retention Module x 1
Back Panel I/O Shield x 1
Bonus Pack CD disc
Silcon Image Serial ATA Driver Diskette x 1
Enhanced Full Pictured Manual x 1
Easy Installation Guide x 1
